Waste Gas Management

VetEquip Scavenging Cube

VetEquip Scavenging Cube The Scavenging cube creates low-pressure/high-flow exhaust for chambers such as the VetEquip Vented Chamber, and low-flow/high-pressure vacuum for circuits like the CX-series nosecones or similar. Vent to a VaporGuard filter or in-house evacuation for easy removal of all waste gas.

  • Scavenging Cube Part # 931600
  • Vented Chamber Part # 942102
  • CX-R Circuit Part # 921616
  • Vaporguard Filter/case Part # 931401

VetEquip Portable Scavenging Set Up

Vetequip-SI-6 Vetequip Filtermate Vetequip-Filtermate Attachment

Self-contained recirculating air cleaning systems plug in to any 110 outlet to remove contaminated waste gas at its source. With the combination of these three products, you are able to scavenge a variety of anesthesia stations.

  • Portable "active" scavenging
  • Simple and easy set up process
  • Replacement charcoal filters
  • Use with sealed or vented chambers and nose cone circuits
  • SI-6 Scavenging Interface: Part # 931445
  • Filter Mate Extractor: Part # 935101
  • Filter Mate Adaptor: Part # 935102

Hallowell Vacuum Scavenger Interface

The only scavenging interface system available with a backup, alternative method of scavenging, as well has being MRI compatible.

  • Hallowell Vacuum Scavenger InterfaceA newly designed vacuum/scavenging interface with scavenging redundancy.
  • In the event of vacuum system failure, the anesthetics (not N2O) in the waste gases are filtered by activated charcoal prior to exhausting into the room and the reservoir bag will not over distend.>
  • No valves or the problems associated with moving parts.>
  • Scavenging flow easily and precisely controllable between 1 and 10 lpm - visually verifiable at any time.>
  • Scavenging connections (2) designed to accommodate both 19 and 22mm tubes. No more searching for adapters or white tape.>
  • Compact. Wall mount, pole mount, and ceiling drop mount configurations are available with any standard suction (vacuum) or EVAC connection, i.e., DISS, Ohio, Chemtron, Schrader or Puritan style quick connects and hose barbs.>
  • Part # 000A3463

Matrx™ Central Scavenger

Matrx™ Central ScavengerScavenging Simplified!  The Matrx™ Central Scavenger... one less thing to worry about in your clinic.

Keep your mind free to focus on caring for your patients, not on scavenging excess anesthetic gas. The Matrx™ Central Scavenger safely removes waste gas from your clinic without the cost or hassle of charcoal canister replacement.

  • Replace charcoal canisters forever with an active gas scavenging system that quietly and consistently keeps you safe
  • Scavenge waste gas from up to 4 anesthesia machines
  • Easily expand the system to cover up to 12 anesthesia machines without significant expense
  • Keep your clinic neat and tidy without bulky interface devices attached to the anesthesia machines
  • Simple installation process and flexible design ensures your scavenging system will be successfully installed
  • Unparalleled service and support to give you peace of mind
  • Part # 40162800

VetEquip Downdraft Anesthesia Work Station

VetEquip Downdraft Anesthesia Work StationThe Downdraft Anesthesia Work Station is specifically designed to provide a small bench-mounted unit with unrestricted access for those procedures that are difficult to perform in a fume cabinet. The downflow action takes the contaminated air away from the operator and an audible alarm will alert the operator when the airflow falls to an unacceptable level.

Part # 966001

VetEquip VaporGuard Activated Charcoal Filter

100% Containment of Waste Anesthetic Gases

VetEquip VaporGuard Activated Charcoal FilterA common hazard of inhalation anesthesia is the release of waste anesthetic gases into the breathing environment of the personnel.

In a recent independent study, VetEquip's VaporGuard filter was shown to be the only filter that prevented waste anesthetic gas break-through when used as directed.

  • Activated charcoal filter proven more effective that others on the market
  • Effective in any position or orientation
  • Seamlessly incorporate into your existing SOP
  • Part # 931401

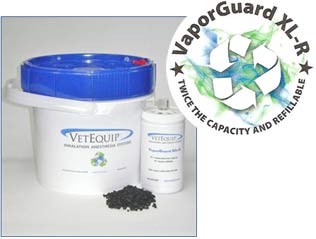

VetEquip VaporGuard XL-R

VetEquip VaporGuard XL-RTWICE THE CAPACITY AND REFILLABLE
Introducing the VaporGuard XL-R. The "XL" means this canister has twice the carrying capacity than the current VaporGuard canister; which means it will hold 100g of agent vs. the current 50g. The "R" designation means a refillable/reusable canister. This is designed to be taken apart by you, the investigator and refilled with bulk carbon you can acquire from VetEquip.

Ohio Medical Vacuum Regulators

Ohio Medical Vacuum Regulators Features and Benefits
  • Push-To-Set™ never-miss automated vacuum level selection
  • Quick to Max 2 turns or less to full wall vacuum resuscitation
  • Digital Gauge accuracy of ±1% of full scale
  • Part # 1325
Ohio Medical Vacuum Regulators Features and Benefits
  • Built-in Patented Push-To-Set™ feature
  • Quick-To-Max, Only 2 turns to full wall vacuum
  • Top mounted on/off switch for ease of use
  • Positive Pressure Safety Relief Valve
  • Brighter glow-in-the-dark gauge increments and needle
  • Smaller, sleek design for tight spaces
  • Part # 1225

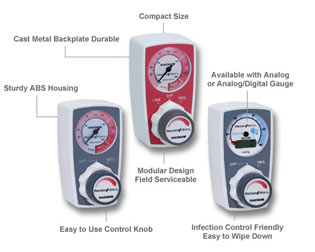

Precision Vacuum RegulatorsPrecision Vacuum Regulators

It's Field Serviceable.
The unique modular design makes repair a breeze for any biomed or central supply department. The unit is made up of six (6) easy-to-replace modular components.

It's Durable.
Unlike the normal plastic inlet and outlet connections on most units, the cast metal backplate connections are extremely durable, thereby saving unnecessary repair costs.

It's Compact.
As a result of its modular design, the unit is 25-50% smaller than other suction regulators making it the product of choice for crowded wall and rail areas.

It's Sturdy.
The case is made of strong ABS plastic. It features a smooth surface with rounded corners making cleaning easy. The case also houses the gauge for extra protection.

It's User-Friendly.
The large control knob and easy-to-read settings make vacuum adjustments simple, even in emergency situations.

It's Safe.
The Pediatric vacuum regulator is restricted to 170 mmHg (±10 mmHg) to prevent high vacuum situations and the gauge face is imprinted with the Precision Medical's "Stork Symbol" to identify the unit for pediatric applications

Parts # PM 3000 | PM 3100 | PM 3500

VetEquip Monitoring BadgeVetEquip Monitoring Badge

Badges are worn by personnel in the anesthesia procedure area. The badge adsorbs halogenated hydrocarbons (including isoflurane and halothane). After being worn for 8 hours, they are repackaged in foil containers and sent to a chemical laboratory for analysis. The lab determines the exposure levels and reports the results.

Part # 931443
